LIF series for high accuracy
Exposed linear encoders consist of a measuring standard and a scanning head. Please select these two components from the lists. .
| Model | Basline error | Substrate and mounting | Interpolation error | Measuring length | |
|---|---|---|---|---|---|
| Accuracy grade | Intervall | ||||

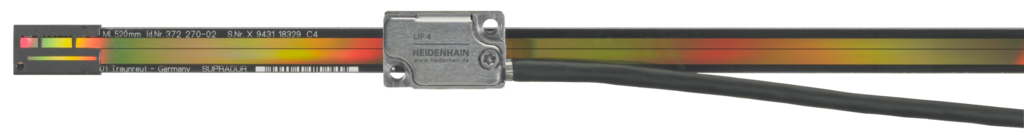

| LIF 400 | ± 1 μm ± 3 μm | ≤ ± 0.225 μm/ 5 mm | Scale of Zerodur glass ceramic or glass, bonded with PRECIMET adhesive film | ± 12 nm | 70 mm to 1640 mm |
