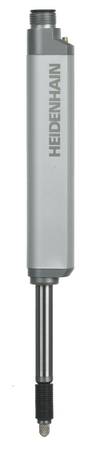

HEIDENHAIN-ACANTO

Absolute measuring method

  • The position value is available immediately after switched on
  • No counting error
  • No referencing needed—measured value is always available

High degree of protection

  • Protection up to IP67

Compact size

  • Station width of 15 mm

EnDat 2.2 interface

  • Additional information available on length gauge status (diagnostics, warnings, alarms)

Properties

Measuring range12 or 30 mm
System accuracy± 2 µm
Plunger actuationBy measured object or pneumatic
Protection

By measured object, IP67

Pneumatic, up to IP67
InterfaceEnDat 2.2
