Specifications |

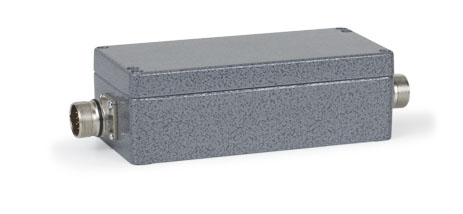

IBV 600 |
IBV 660 B |
||||
Input |
1 VPP |
|||||
Electrical connection |
M23 flange socket (female) 12-pin |
|||||
Cable length |
≤ 60 m at UP > 4.9 V ≤ 30 m at Iencoder ≤ 120 mA |
|||||
Interpolation1) |
None |
25-fold, 50-fold, 100-fold, 200-fold, 400-fold |
||||
Input frequency1) for interpolation |
Nominal values2) |
|||||
None |
600 kHz |
– |
||||
2-fold |
– |
– |
||||
25-fold |
– |
100 kHz |
50 kHz |
25 kHz |
12.5 kHz |
|
50-fold |
– |
50 kHz |
25 kHz |
12.5 kHz |
6.25 kHz |
|
100-fold |
– |
25 kHz |
12.5 kHz |
6.25 kHz |
3.12 kHz |
|
200-fold |
– |
12.5 kHz |
6.25 kHz |
3.12 kHz |
1.56 kHz |
|
400-fold |
– |
6.25 kHz |
3.12 kHz |
1.56 kHz |
0.78 kHz |
|
Output |
TTL (non-clocked) |
TTL (clocked) |
||||
Electrical connection |
M23 flange socket (male) 12-pin |
|||||
Cable length |
≤ 100 m ( ≤ 50 m) |
|||||
Edge separation a |
≥ 0.200 µs |
≥ 0.075 µs |
≥ 0.175 µs |
≥ 0.370 µs |
≥ 0.760 µs |
|
Reference mark signal1) |
Pulse width 90° elec. or 270° elec. |
|||||
Fault indication1) |
through fault detection signal or, in addition, Ua1/Ua2 high impedance |
|||||
Power supply |
5 V ± 5 % |
|||||
Current consumption3) |
≤ 85 mA |
≤ 120 mA |
||||
Operating temperature Storage temperature |
0 °C to 70 °C –30 °C to 80 °C |
|||||
Vibration 50 to 2 000 Hz Shock 11 ms |
≤ 10 m/s2 ≤ 300 m/s2 |
|||||
Degree of protection |
IP 65 |
|||||
Weight |
Approx. 0.7 kg |
|||||
Bold: This version is the factory default setting 1) Adjustable 2) The actual input frequency can be up to 5 % lower. Exceeding this limit results in failure 3) Not including the current consumption of the encoder (see encoder brochure) and without output load |
