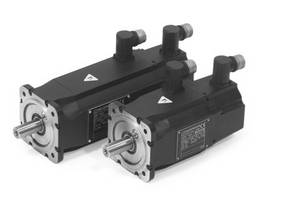

Motor |
QSY 96 A |
QSY 96 G |
||
Rated voltage UN |
310 V/308 V |
291 V/290 V |
||
Rated power output PN |
0.5 kW/0.45 kW |
1.4 kW/1.3 kW |
||
Rated speed nN |
4500 rpm |
|||
Rated torque MN1) |
1.05 Nm/0.95 Nm |
3.0 Nm/2.7 Nm at 4500 rpm |
||
Rated current IN1) |
1.1 A/1.0 A |
3.3 A/3.0 A |
||
Stall torque M01) |
1.5 Nm |
5.2 Nm |
||
Stall current I01) |
1.5 A |
5.2 A |
||
Max. speed nmax |
6000 rpm |
|||
Max. torque Mmax2) |
5.5 Nm |
22 Nm |
||
Max. current Imax2) |
6.3 A |
25.4 A |
||
Mass m |
3.6 kg |
4.5 kg |
7.2 kg |
8.1 kg |
Rotor inertia J |
1.8 kgcm2 |
2.1 kgcm2 |
6.3 kgcm2 |
6.6 kgcm2 |
Brake Rated voltage UBr Rated current IBr Holding torque MBr |
Without – – – |
With DC 24 V 0.5 A 5.0 Nm |
Without – – – |
With DC 24 V 0.5 A 5.0 Nm |
ID For motor with ERN 1387 For motor with ECN 1313 For motor with EQN 1325 |
344512-0C 344512-8C 344512-5C |
344512-0D 344512-8D 344512-5D |
339875-0C 339875-8C 339875-5C |
339875-0D 339875-8D 339875-5D |
1) At 100 K 2) Max. 200 ms Italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %) |
