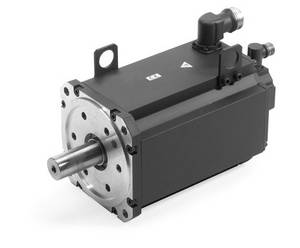

Motor |
QSY 190 C EcoDyn |
QSY 190 D EcoDyn |
QSY 190 F EcoDyn |
QSY 190 K EcoDyn |
||||
Rated voltage UN |
427 V/420 V |
421 V/412 V |
408 V/404 V |
399 V/396 V |
||||
Rated power output PN |
7.2 kW/6.5 kW |
9.6 kW/8.6 kW |
9.9 kW/8.9 kW |
12.2 kW/11.0 kW |
||||
Rated speed nN |
3000 rpm (in EcoDyn mode) |
|||||||
Rated torque MN1) |
23.0 Nm/20.7 Nm |
30.6 Nm/27.5 Nm |
31.5 Nm/28.4 Nm |
39.0 Nm/35.1 Nm |
||||
Rated current IN1) |
11.8 A/10.6 A |
14.4 A/13.0 A |
15.0 A/13.5 A |
20.2 A/18.2 A |
||||
Stall torque M01) |
28.0 Nm |
38.0 Nm |
47.6 Nm |
62.5 Nm |
||||
Stall current I01) |
14.0 A |
18.1 A |
22.7 A |
29.8 A |
||||
Max. speed nmax |
3900 rpm (in EcoDyn mode) |
|||||||
Max. torque Mmax2) |
85 Nm |
107 Nm |
150 Nm |
240 Nm |
||||
Max. current Imax2) |
50.2 A |
62.9 A |
88.4 A |
134.3 A |
||||
Mass m |
29.0 kg |
37.0 kg |
33.5 kg |
41.5 kg |
42.5 kg |
50.5 kg |
61 kg |
69.0 kg |
Rotor inertia J |
106 kgcm2 |
115 kgcm2 |
133 kgcm2 |
142 kgcm2 |
190 kgcm2 |
199 kgcm2 |
290 kgcm2 |
299 kgcm2 |
Brake Rated voltage UBr Rated current IBr Holding torque MBr |
Without – – – |
With DC 24 V 1.38 A 70 Nm |
Without – – – |
With DC 24 V 1.38 A 70 Nm |
Without – – – |
With DC 24 V 1.38 A 70 Nm |
Without – – – |
With DC 24 V 1.38 A 70 Nm |
ID For motor with ERN 1387 For motor with ECN 1313 For motor with EQN 1325 |
392023-1C 392023-8C 392023-6C |
392023-1D 392023-8D 392023-6D |
392024-1C 392024-8C 392024-6C |
392024-1D 392024-8D 392024-6D |
388244-1C 388244-8C 388244-6C |
388244-1D 388244-8D 388244-6D |
392025-1C 392025-8C 392025-6C |
392025-1D 392025-8D 392025-6D |
1) At 100 K 2) Max. 200 ms Italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %) |
