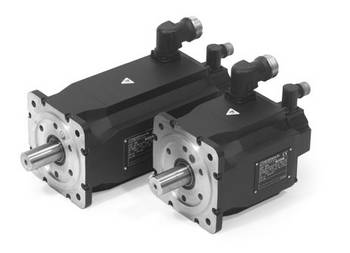

Motor |
QSY 155 B |
QSY 155 C |
QSY 155 D |
QSY 155 F |
||||
Rated voltage UN |
298 V/295 V |
294 V/291 V |
293 V/291 V |
289 V/287 V |
||||
Rated power output PN |
2.9 kW/2.6 kW |
3.9 kW/3.5 kW |
4.6 kW/4.1 kW |
5.2 kW/4.7 kW |
||||
Rated speed nN |
3000 rpm |
|||||||
Rated torque MN1) |
9.2 Nm/8.3 Nm |
12.5 Nm/11.3 Nm |
14.8 Nm/13.3 Nm |
16.7 Nm/15.0 Nm |
||||
Rated current IN1) |
6.9 A/6.2 A |
8.7 A/7.8 A |
10.6 A/9.5 A |
12.0 A/10.8 A |
||||
Stall torque M01) |
13.0 Nm |
17.7 Nm |
21.6 Nm |
26.1 Nm |
||||
Stall current I01) |
9.1 A |
11.8 A |
14.6 A |
18.0 A |
||||
Max. speed nmax |
5000 rpm |
|||||||
Max. torque Mmax2) |
39 Nm |
52 Nm |
64 Nm |
90 Nm |
||||
Max. current Imax2) |
29.7 A |
38.9 A |
49.5 A |
68.6 A |
||||
Mass m |
15.0 kg |
18.0 kg |
17.5 kg |
20.5 kg |
20.0 kg |
23.0 kg |
25.0 kg |
28.0 kg |
Rotor inertia J |
33 kgcm2 |
35 kgcm2 |
43 kgcm2 |
45 kgcm2 |
54 kgcm2 |
56 kgcm2 |
75 kgcm2 |
77 kgcm2 |
Brake Rated voltage UBr Rated current IBr Holding torque MBr |
Without – – – |
With DC 24 V 1.04 A 40 Nm |
Without – – – |
With DC 24 V 1.04 A 40 Nm |
Without – – – |
With DC 24 V 1.04 A 40 Nm |
Without – – – |
With DC 24 V 1.04 A 40 Nm |
ID For motor with ERN 1387 For motor with EQN 1325 |
339880-0C 339880-5C |
339880-0D 339880-5D |
365308-0C 365308-5C |
365308-0D 365308-5D |
339881-0C 339881-5C |
339881-0D 339881-5D |
339882-0C 339882-5C |
339882-0D 339882-5D |
1) At 100 K 2) Max. 200 ms Italics: Data for motors with EQN 1325 (rated torque reduced by 10 %) |
