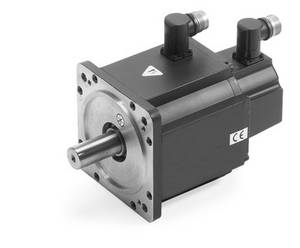

Motor |
QSY 130 C EcoDyn |
QSY 130 E EcoDyn |
||
Rated voltage UN |
415 V/411 V |
407 V/403 V |
||
Rated power output PN |
1.6 kW/1.5 kW |
2.3 kW/2.1 kW |
||
Rated speed nN |
3000 rpm (in EcoDyn mode) |
|||
Rated torque MN1) |
5.2 Nm/4.7 Nm |
7.4 Nm/6.7 Nm |
||
Rated current IN1) |
2.7 A/2.4 A |
3.8 A/3.4 A |
||
Stall torque M01) |
6.0 Nm |
9.0 Nm |
||
Stall current I01) |
3.0 A |
4.5 A |
||
Max. speed nmax |
4200 rpm (in EcoDyn mode) |
|||
Max. torque Mmax2) |
16 Nm |
23 Nm |
||
Max. current Imax2) |
8.6 A |
12.7 A |
||
Mass m |
7.9 kg |
8.8 kg |
9.7 kg |
10.6 kg |
Rotor inertia J |
16.0 kgcm2 |
16.4 kgcm2 |
21.0 kgcm2 |
21.4 kgcm2 |
Brake Rated voltage UBr Rated current IBr Holding torque MBr |
Without – – – |
With DC 24 V 0.6 A 13.5 Nm |
Without – – – |
With DC 24 V 0.6 A 13.5 Nm |
ID For motor with ERN 1387 For motor with ECN 1313 For motor with EQN 1325 |
389053-1C 389053-8C 389053-6C |
389053-1D 389053-8D 389053-6D |
388422-1C 388422-8C 388422-6C |
388422-1D 388422-8D 388422-6D |
1) At 100 K 2) Max. 200 ms Italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %) |
