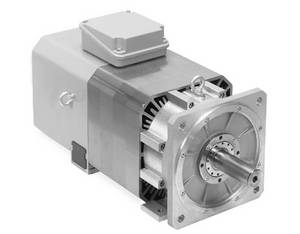

Motor |
QAN 260 M |
QAN 260 L |
QAN 260 U |
|||
Rated voltage UN |
348 V |
331 V |
318 V |
|||
Rated power output PN |
15 kW |
20 kW |
24 kW |
|||
Rated speed nN |
1500 rpm |
|||||
Rated torque MN (105 K) |
96.0 Nm |
128.0 Nm |
153.0 Nm |
|||
Rated current IN (105 K) |
35.0 A |
46.0 A |
58.0 A |
|||
Efficiency |
0.85 |
|||||
Max. shaft speed nmax1) Standard bearing Spindle bearing* |
8 000 rpm 10 000 rpm or 12 000 rpm |
8 000 rpm 10 000 rpm |
||||
Max. current Imax |
70 A |
96 A |
116 A |
|||
Mass m |
112 kg |
135 kg |
158 kg |
|||
Rotor inertia J |
700 kgcm2 |
920 kgcm2 |
1100 kgcm2 |
|||
Protection |
IP 54 |
|||||
Fan Rated voltage UL Rated current IL Frequency fL |
3 AC 400 V 0.22 A/0.26 A 50 Hz/60 Hz |
|||||
ID Motor with standard bearing Motor with spindle bearing 10 000 rpm 12 000 rpm |
Stub shaft 510019-63 510019-53 510019-73 |
With keyway 510019-4H 510019-5H – |
Stub shaft 510020-43 510020-53 510020-73 |
With keyway 510020-4H 510020-5H – |
Stub shaft 510021-43 510021-53 – |
With keyway 510021-4H 510021-5H – |
1) The max. speed depends on the motor’s application conditions, such as the shaft load * Please select when ordering Bold: Standard version |
